How to Live Stream a Multi-Cam Musical Performance with YoloBox Ultra

Introduction

Live streaming a multi-camera musical performance demands professional switching, rock-solid connectivity, and broadcast-quality output – all in a portable package. This is where the YoloBox Ultra truly shines.

Meet one of our expert Italian users, Michele Mariano, who relies on YoloBox Ultra for high-stakes live productions. Specializing in political meetings, sporting events, and musical performances for clients, he needs equipment that delivers flawless results every time. Their recent musical event stream showcases exactly why YoloBox Ultra has become his go-to solution.

Event Background

“Ti parlo con il pane” (I Speak to You Through Bread) – A musical and poetic performance at the Music Hall of Palazzo Leuzzi in Galatone. Author Nico Mauro engaged in conversation with Mariateresa Funtò, accompanied by Maestro Gianluigi Antonaci on piano and electronics. The verses were performed by actress Silvia Lodi. Captured through the lenses of Michele Mariano, broadcasting on behalf of eLabora – Galatone’s Community Cooperative.

Here’s how they did it—and how you can achieve similar results.

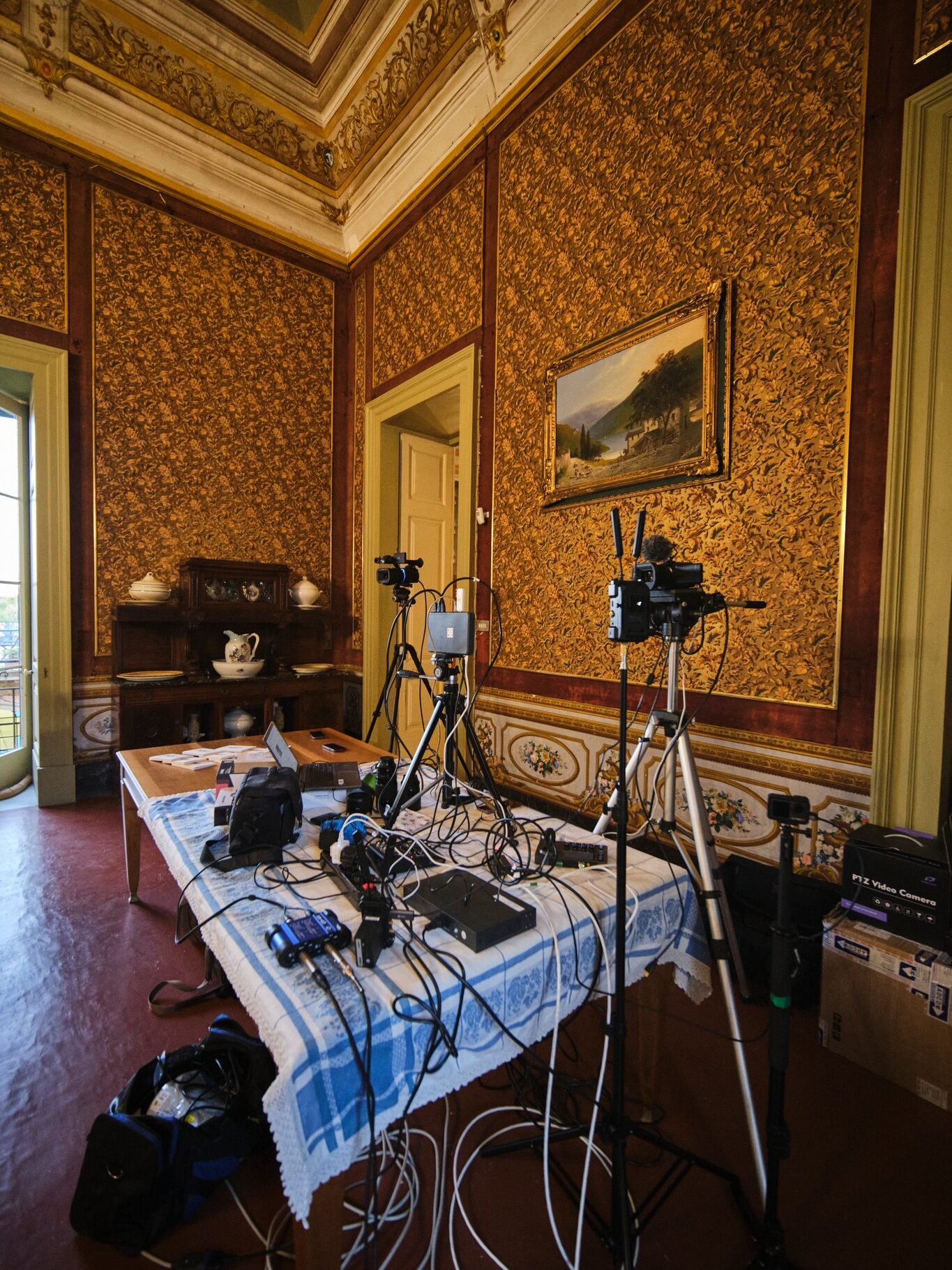

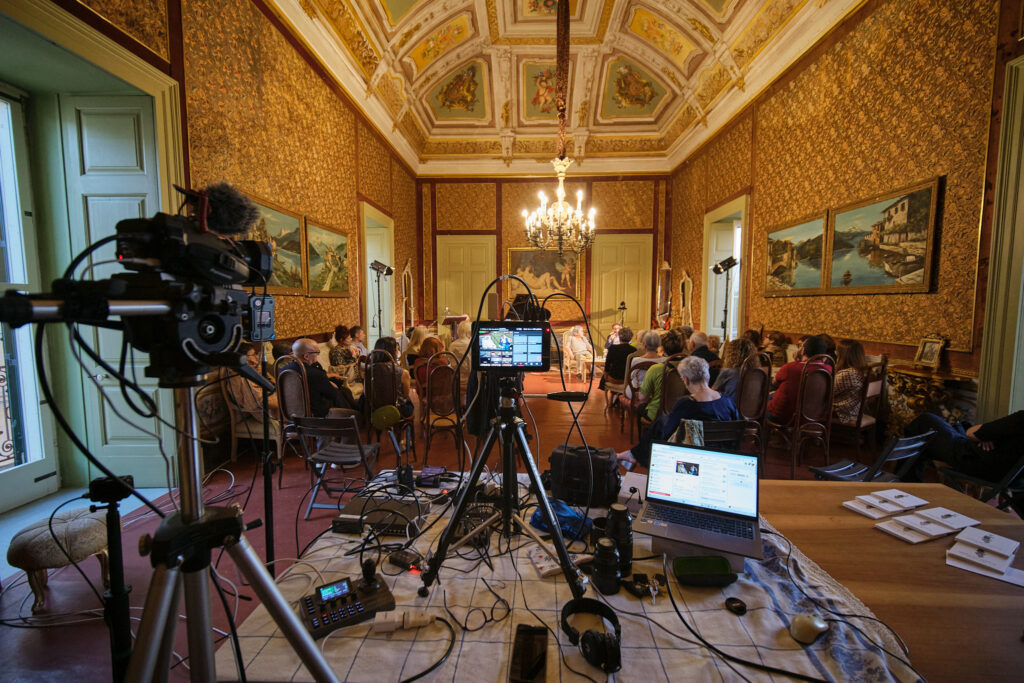

Michele’s Multi-Cam Streaming Setup with YoloBox Ultra

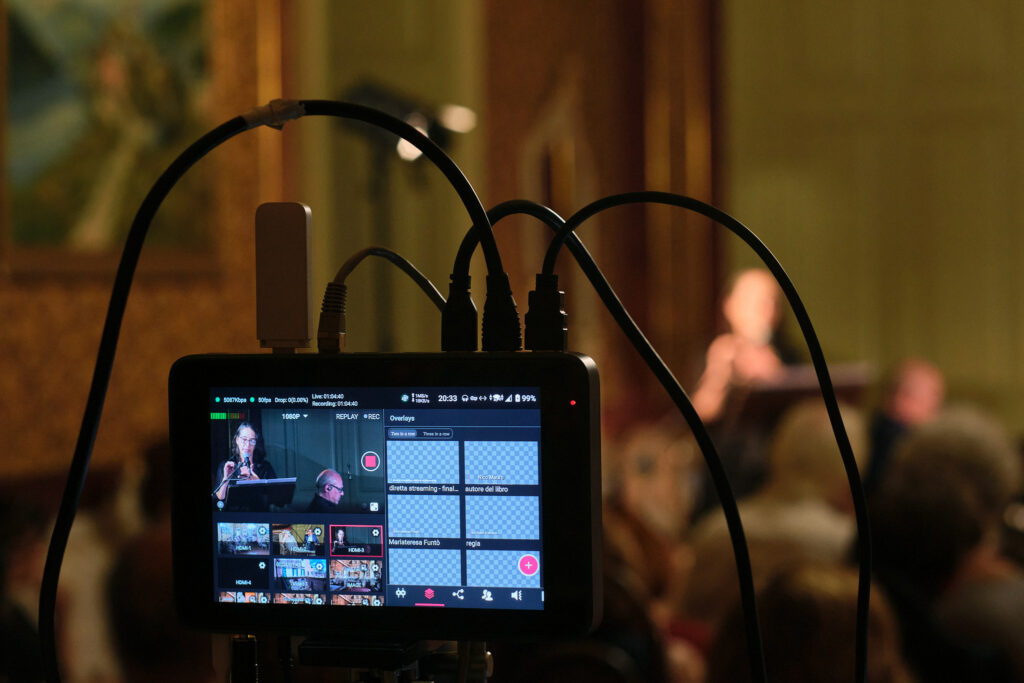

“I used 4 video sources. Two Panasonic 4K cams connected via HDMI, a remotely controlled PTZ cam with an HDMI Ethernet extender placed 15 meters away. A DJI Action 5 connected to a Hollyland Cosmo C2 HDMI transmitter. Direct audio from the mixer with two Cannon outputs then merged into a mini jack adapter. As a connection I used bonding using the Ethernet line, a portable WiFi router with a SIM card, a SIM card inside the Yolo and a SIM dongle. Four sources then. I transmitted at 5,000 bitrate 1080p 50fps. Not even a drop. Everything was perfect until the end.”

Main Streaming Gear

• YoloBox Ultra – The all-in-one streaming hub handled encoding, switching, and bonding for uninterrupted broadcast.

Cameras

• Two Panasonic 4K cameras (connected via HDMI)
• One PTZ camera (remotely controlled via HDMI + Ethernet extender, placed 15 meters away)
• DJI Action 5 (connected via Hollyland Cosmo C2 HDMI wireless transmitter)

Audio Setup

• Direct feed from the mixer (using two XLR outputs merged into a mini-jack adapter)

Networking & Connectivity

• Cellular Bonding – Combined four connections for maximum stability:
  • Ethernet line
  • Portable Wi-Fi router (with SIM card)
  • Internal YoloBox Ultra SIM slot
  • External 4G dongle
• Bitrate: 5,000 kbps at 1080p 50fps—zero drops throughout the entire event.

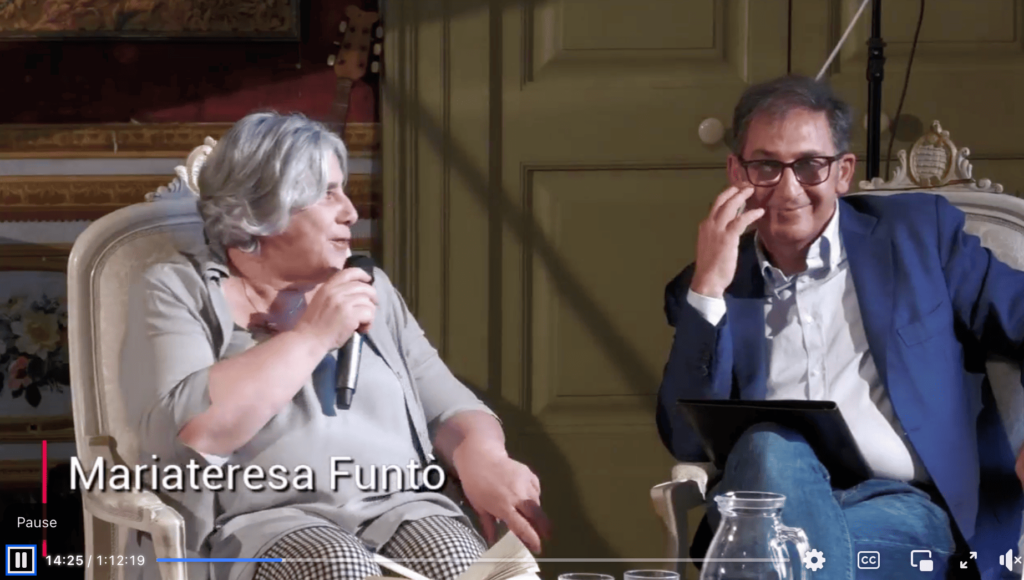

See the Professional Results

For those curious to see this setup in action, you can check out the live musical performance here.

What YoloBox features do you use most? Or what are your favorite features?

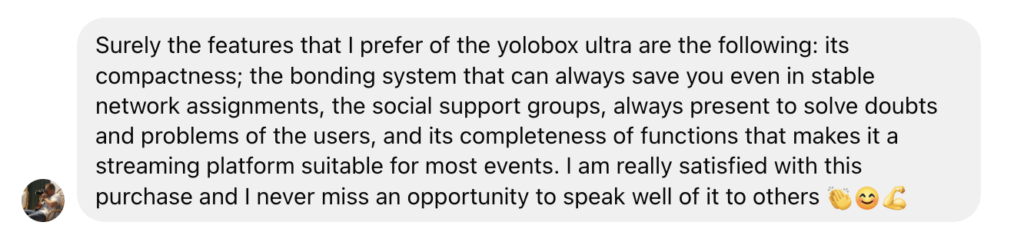

Michele highlighted several key advantages of the YoloBox Ultra for professional live streaming:

• Compact & All-in-One – No need for extra encoders or switchers; everything runs on a single device.
• Network Bonding – Ensures stability even in unpredictable network conditions.
• Multi-Camera Support – Handled four video sources effortlessly with HDMI and wireless inputs.
• Built-in Professional Features – Custom overlays, PTZ control, and ISO recordings enhanced production quality.
• Strong Community Support – Quick troubleshooting through YoloLiv’s responsive user group.

Conclusion

Take this real-world musical event as proof: not only does the YoloBox Ultra simplify complex setups, but it also delivers broadcast-grade results every time. With its compact design and powerful features, you can effortlessly elevate concerts, theater shows, or any live performance.
